RK-TS2

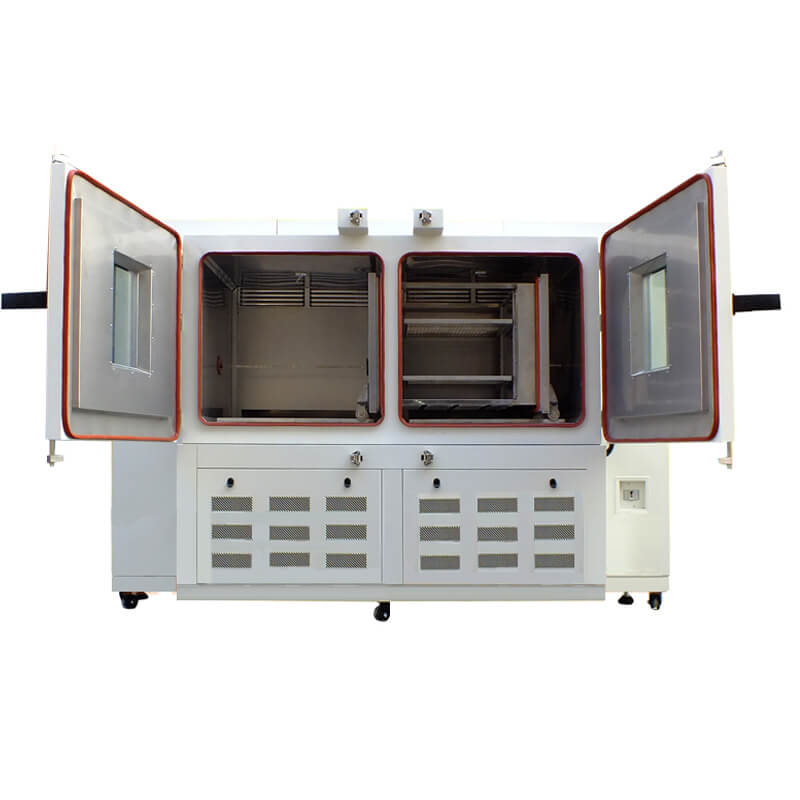

Horizontal Thermal Shock Chambers

Horizontal Thermal Shock Chambers is customized for special test requirement, which has a horizontal moving basket that automatically transfer the product in two temperature chambers to discover product design and process technology defects. Wide temperature range, short moving time, short temperature recovery time, long test cycles are our speciality for Thermal Shock Test Chambers.

Product Model
RK-TS2
WhatsApp

Description

Application:

Horizontal Thermal Shock Chambers is customized for special test requirement, which has a horizontal moving basket that automatically transfer the product in two temperature chambers to discover product design and process technology defects.

Wide temperature range, short moving time, short temperature recovery time, long test cycles are our speciality for Thermal Shock Test Chambers.



Specification:

Internal volume

50L;100L; 150L; 216L(Can be customized)

Chamber material

Inner: SUS304

Exterior Cold-rolled steel plate baking vanish (SUS for selection)

High Temperature

exposure range

Standard: +60℃to +150℃

Customized: 180℃, 200℃ or specified

Low Temperature

exposure range

A(-10℃~-40℃); B(-10℃~-55℃); C(-10℃~-65℃);

Pre-heat chamber temp. range

+60℃to +200℃ (Customized)

Pre-cool chamber temp. range

A(-10℃~-55℃); B(-10℃~-65℃); C(-10℃~-80℃) for choosing

Pre-heat time

RT to +200 ℃ <15min

Pre-cool time

A(20℃~-55℃)≤70min; B(20℃~-65℃) ≤80min; C(20℃~-80℃) ) ≤90min;

Test mode

Pneumatic mode with carrier basket

Carrier basket moving time

<10s

Temperature recovery time

≤5min

Controller

PLC touch screen

Compressor

Imported brand

Cooling system

Air cool or water cool for choosing

Power

1-ph, 220V, 50Hz; 3-ph, 380V, 50Hz



Features:

1. Patented technology

2. Short temperature recovery time by special design

3. Pneumatic driving system to reduce basket moving time

4. Cable hole optional for sample with powe connecting

5. Pre-heat and pre-cool mode for test time saving and improve energy efficiency
