Application:

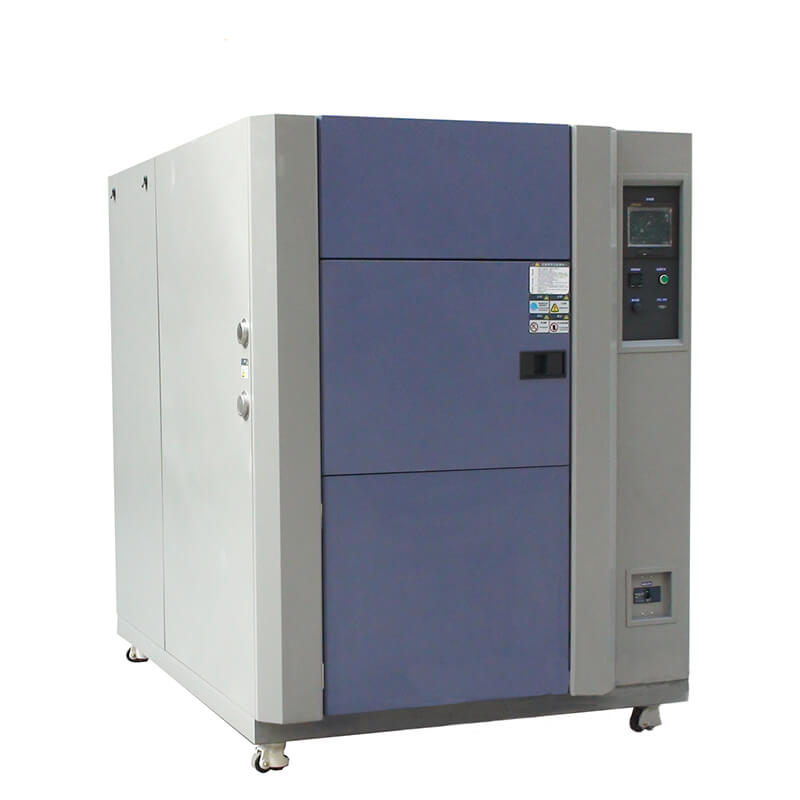

Thermal Shock Chamber-3 Zone: High temperature zone, low temperature zone and room temperature zone for test sample.
Thermal Shock Test Chamber with pneumatic throttle mode for air change, which does not require to move tested sample, can make product in high temperature or low temperature in short time to simulate fast temprature change to test product reliability.
A wide selection of models of Thermal Stress Test Chamber which includes vertical type and horizontal type are available to fit your exact testing requirements.
Specification:
|
Capacity
|
50L;100L; 150L; 200L; 300L (Can be customized)
|
|
Material
|
Inner SUS304, exterior Cold-rolled steel plate paint (SUS for selection)
|
|
High Temperature
exposure range
|
+60℃to +150℃ (180℃, 200℃ for customized need)
|
|
Low Temperature
exposure range
|
A(-10℃~-40℃); B(-10℃~-55℃); C(-10℃~-65℃);
|
|
Pre-heat chamber
temp. range
|
+60℃to +180℃ (200℃, 250℃ for customized need)
|
|
Pre-cool chamber
temp. range
|
A(-10℃~-55℃); B(-10℃~-65℃); C(-10℃~-80℃);
|
|
Pre-heat time
|
RT to +200 ℃ <15min
|
|
Pre-cool time
|
A(20℃~-55℃)≤70min; B(20℃~-65℃) ≤80min; C(20℃~-80℃) ) ≤90min;
|
|
Test mode
|
Pneumatic throttle mode, air change
|
|
Pneumatic throttle
switch time
|
<3s
|
|
Temperature recovery time
|
Less than 10min
|
|
Refrigerant
|
High temp. side: R404A Low temp. side: R23
|
|
Compressor
|
French brand Tecumseh or Germany brand Bock
|
|
Cooling system
|
Air cool or water cool
|
|
Features
|
1. Test samples don't move
2. Horizontal airflow design assures uniform results
3. Extremely compact systems with a vertically sliding door for added space savings
4. Utilizes the latest refrigeration technology: electronic expansion valve and scroll compressor
|
Remark:
1. Above specifications under the condition of a 23C ambient temperature, cooling water temperature 25C, rated voltage, and no specimen inside the test area.
2. The performance values are based on IEC 60068-3-5:2001
3. Each chamber is running independently
4. This model complies with CE standard requirements
5. Cleanliness of the heat exchange affect rates
Features:
1. Monitoring or powering samples by a flexible cabling tube that comes out the side, rather than sticks out the top.
2. Tested sample can be safely removed quickly under chamber cool-down mode after the test is finished.
3. An observation window is optional to make samples easily checking.
Site requirements:
Power: 1-ph, 220V±10% or 3-ph, 380±10%
Cooling water supply required by water cool mode
