R-FC Series
IP56X IP Dust Test Chamber - 1500L
Dust Test Chamber is equipped with air blower device to stir the dust and blow it into the sealed test chamber. Sample vacuum device is optional for IP5X dustproof test; and the sample should be connected with vacuum pump to pump out the air inside sample for IP6X dustproof test, so that the air can enter into sample through the gap, sleeve or other similar parts.
- Product Model:
- R-FC Series
- Design Standard:
- IP5X/6X, IEC 60529
Description
Application:
Dust Test Chamber conforms to IEC 60529 dust test standards for luminaires, automotive and electronic product requirements.
Dust Test Chamber is equipped with air blower device to stir the dust and blow it into the sealed test chamber. Sample vacuum device is optional for IP5X dustproof test; and the sample should be connected with vacuum pump to pump out the air inside sample for IP6X dustproof test, so that the air can enter into sample through the gap, sleeve or other similar parts.
Test Standard:
IEC 60529, Clause 13.4 IP5X/6X
DIN 40050, IP Codes 5K and 6K
Specification:
|
Model |
R-FC-1500 |
|
|
Internal chamber size (W*D*H) |
1500*1000*1000mm |
|
|
External chamber size (W*D*H) |
1950*1360*2120mm |
|
|
Chamber material |
||
|
Internal chamber |
Stainless steel # 304 |
|
|
External chamber |
Steel plate with powder coating |
|
|
Observing window |
Tempered glass observing window; Dust wiper one piece; Observing light one piece |
|
|
Mesh sample shelf |
Stainless steel # 304 Loading capacity 100kg |
|
|
Performance |
||
|
Mesh wire diameter & distance |
Nominal wire diameter: 50um nominal width of a gap between wires:75um |
|
|
Amount powder used in the test chamber |
2~4kg/m3 |
|
|
Air velocity |
<2m/s |
|
|
Temperature range |
RT+10℃~60℃ |
|
|
Control system |
||
|
Controller |
PLC touch screen controller 1. Blow powder (on / off) time, adjustable 2. Cycle time: adjustable 3. Sample power on / off by connecting dust-proof plug |
|
|
Temperature sensor |
PT100 |
|
|
Vacuum system |
Vacuum pump/ Pressure regulating valve/suction nozzle/pressure gauge, connection pipes |
|
|
Circulating fans |
Multi – blade centrifugal fan with low noise |
|
|
Powder heating system |
Stainless steel mica sheet heating sleeve |
|
|
Safety protection device |
Leakage, short circuit, over-heat, faults alarm etc |
|
|
Power source |
3-phase, 380V, 50Hz, 3.5kW |
|

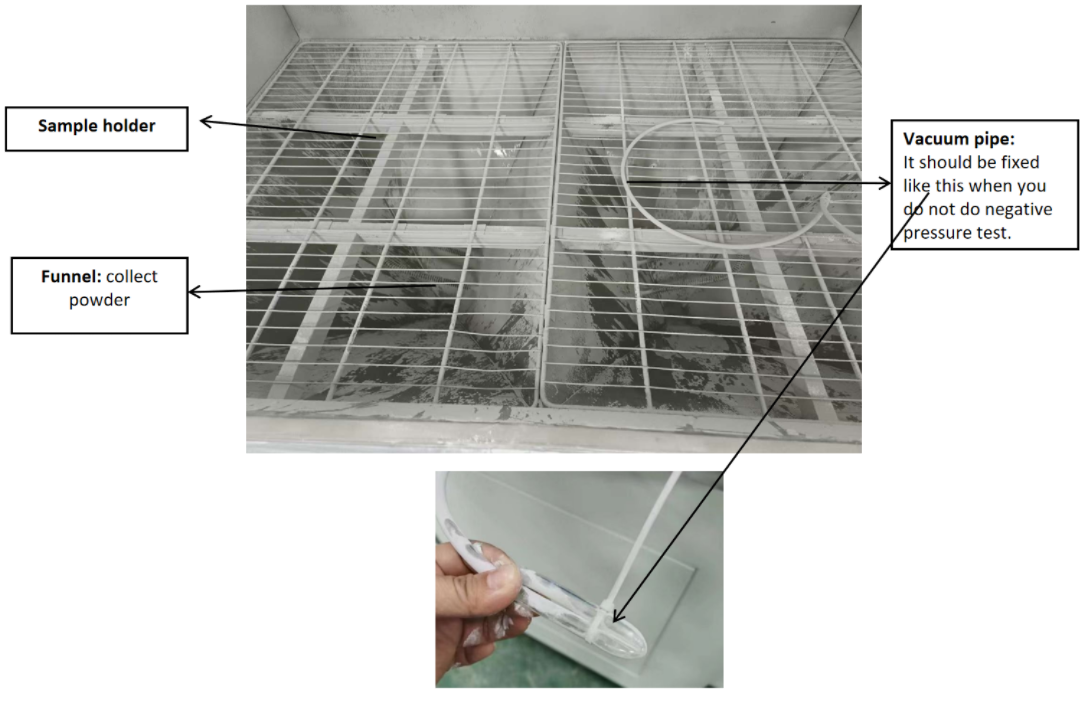

Detailed Pictures:

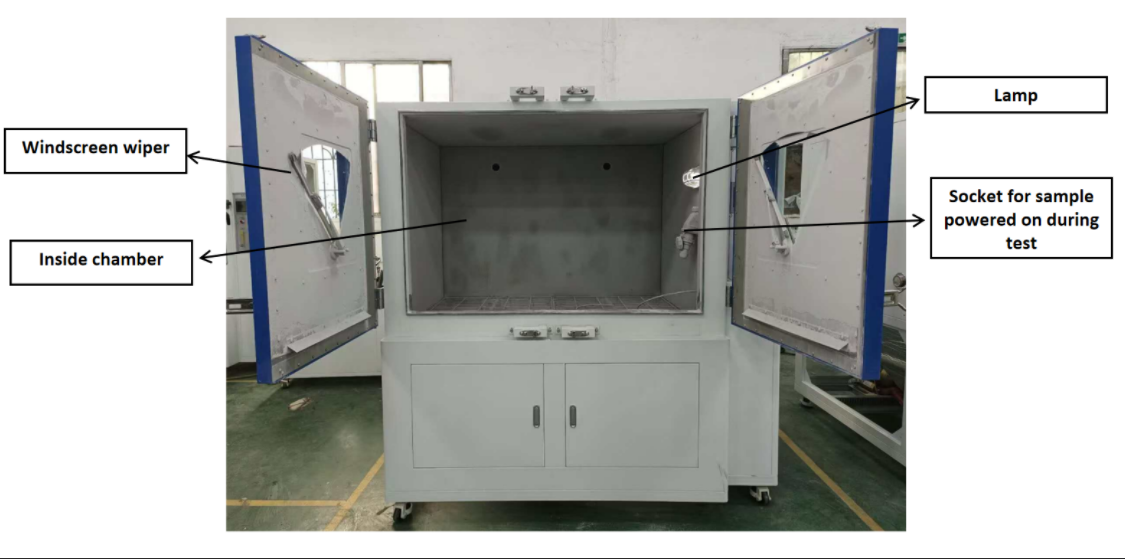

Test device:
