IPX1 Test Probe

Verify the protection of persons against access to hazardous parts, and verify the protection against access with the back of the hand.

Product Model: R-FC-1
Design Standard: IEC 60529, IEC 61032, UL

Application:

Verify the protection of persons against access to hazardous parts,  and verify the protection against access with the back of the hand.



Test Standard:

IEC 60529, IEC 61032, UL



Specification:

Sphere diameter

50mm

Guard diameter

45mm

Guard thickness

4mm

Handle diameter

10mm

Handle length

100mm

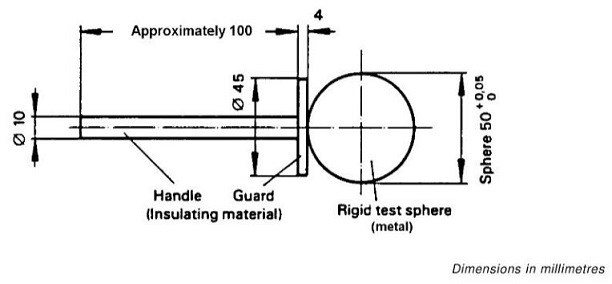

Figure:
