R-SY-510B-4

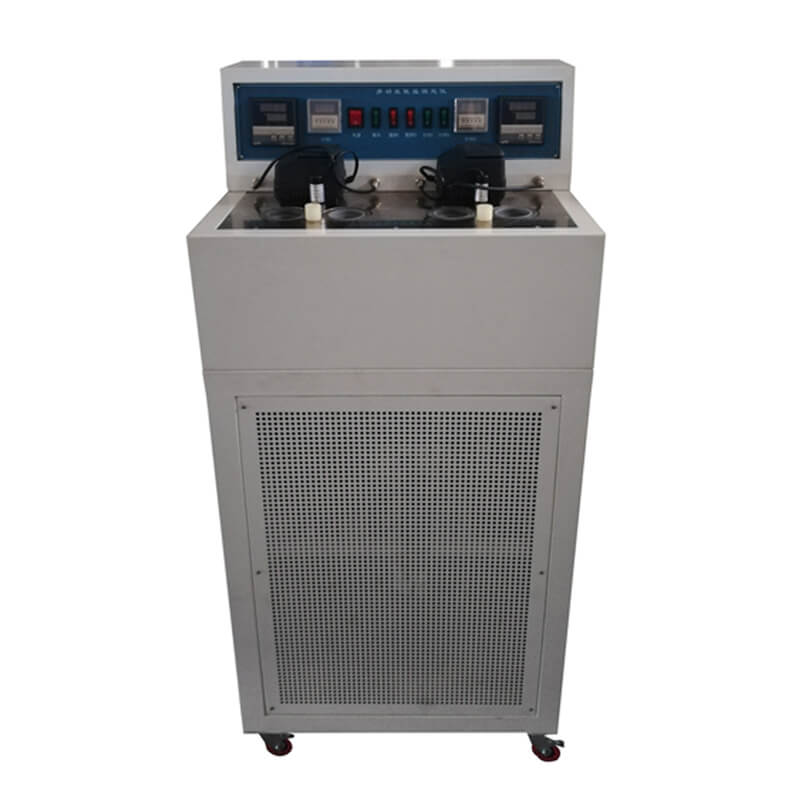

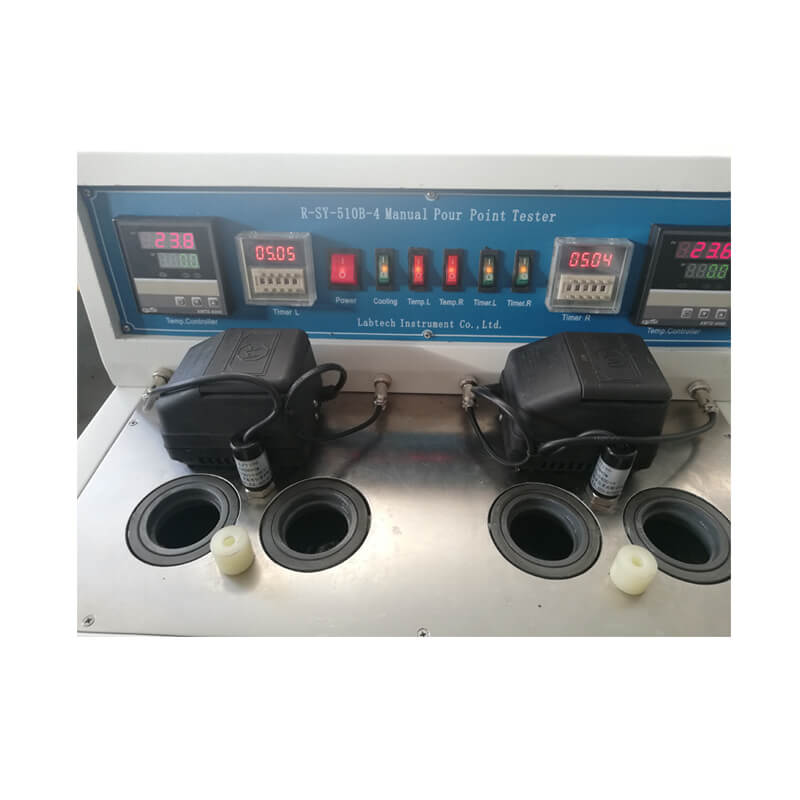

Manual Pour Point Tester

Determination pour point of petroleum products as per standard ASTM D97 at lowest temperature to estimate their utility by simulating certain applications.

Product Model
R-SY-510B-4
Design Standard
ASTM D97
WhatsApp

Description

Application:

Manual Pour Point Tester is suitable for the determination pour point of petroleum products as per standard ASTM D97. It adopts Danfoss cascade compressors for two cooling baths. Each cooling bath can be used for two sample holes to test.
Manual Pour Point Tester also can combine with other test tubes
to do solidification point test with one machine. Manual point test also can be performed by automated type of manual pour point and solidification point tester
.



Test Standard:

ASTM D97-Standard Test Method for Pour Point of Petroleum Products



Specification:

Temperature range& accuracy

R.T. to -70℃±0.1℃ (-40℃ can be chosen)

Test item

Solidification Point & Pour Point Test

Cooling bath

2pcs ( each one for 2 sample test holes, 4samples can be tested in total)

Temperature control

PID digital temperature controller

Timing

60s for alarm

Refrigeration system

Danfoss cascade compressor

Stirring method

Motor

Power

1-ph, 220V±10%, 50 Hz



Configuration list of Pour Point Analyzer

No.

Item List

Specification

Qty

1

Main Unit

1-PH, AC220V, 50Hz

1set

2

Diffuser

3000~6000ml/min

2pcs

3

Test tube

Pour point test

4sets

4

Thermometer

20℃to -80℃

4Pcs

5

Cork

Standard

4Pcs

6

Cover

Standard

4Pcs

7

Fuse

20A

1Pc

8

Power cord

Standard

1Pc



Summary of Test Method:

After preliminary heating, the sample is cooled at a specified rate and examined at intervals of 3°C for flow characteristics. The lowest temperature at which movement of the specimen is observed is recorded as the pour point.
