R-IP12-1000
Water Drip Test Chamber - IPX1&2
Water Drip Test Chamber conforms to IPX1/X2 test standards for luminaires, automotive and electronic product test requirements.
- Product Model:
- R-IP12-1000
- Design Standard:
- IPX1/X2
Description
Application:
Water Drip Test Chamber conforms to IPX1/X2 test standards for luminaires, automotive and electronic product test requirements.
Test Standard:
IPX1/X2
Specification:
|
Model |
R-IP12-1000 |
|
Internal dimension (W*D*H) |
1000*1000*1000mm |
|
External dimension (W*D*H) |
1400*1100*1800mm |
|
Chamber material |
Internal material: Stainless steel 304 External material: Stainless steel Waterproof toughened glass observation window |
|

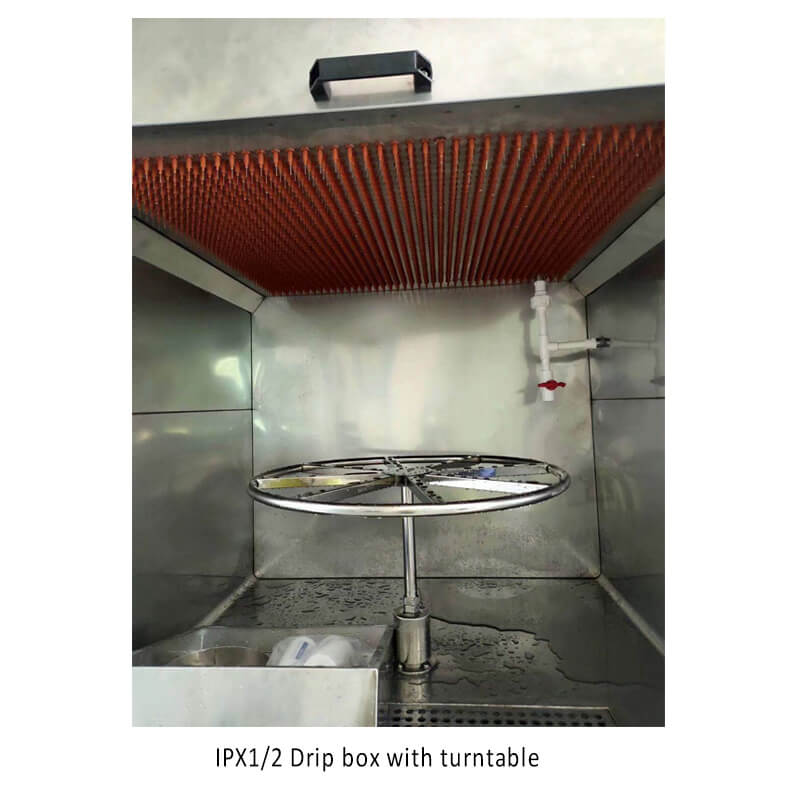

Sample turntable |
Diameter 500mm |
|
Turntable rotation speed |
1~10rpm, can be adjusted |
|
Water drop speed |
1 or 3mm/min, can be adjusted |
|
Drip box size |
800*800mm |
|
Distance from drip box to specimen surface |
200mm |
|
Water drop hole diameter |
0.4mm |
|
Distance from water drop hole |
20mm |
|
Test duration |
1-999,999min, adjustable |
|
Turntable angle for IPX2 |
15° inclined on either side of the vertical in two mutually perpendicular planes |
|
Safety protection device |
Leakage, short circuit, water shortage, etc |
|
Power source |
1-phase, 220V, 50Hz |

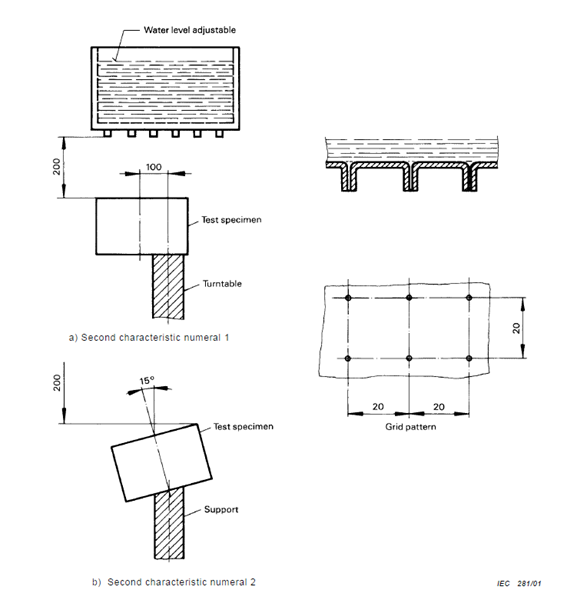

Test device:
