R-FS Series
Water Shower Test Chamber - IPX5&6
IPX5&6 Water Shower Test Chamber conforms to IEC 60598 & 60529 water test standards for luminaires, automotive and electronic product requirements.
- Product Model
- R-FS Series
- Design Standard
- IPX5/X6, IEC 60598, 60529
Description
Application:
Water Shower Test Chamber conforms to IEC 60598 & 60529 water test standards for luminaires, automotive and electronic product requirements.
Test Standard:
IPX5/X6, IEC 60598, 60529
Specification:
|
Item |
Specification |
|
|
Internal chamber size |
1000Wx1000Dx2600Hmm |
|
|
External chamber size |
1400Wx1200Dx3300Hmm |
|
|
IP Code |
IPX5 |
IPX6 |
|
Internal diameter of spray nozzle |
6.3mm |
12.5mm |
|
Delivery rate |
12.5l/min±5% |
100l/min±5% |
|
Core of the substantial stream |
Circle of approximately 40mm diameter at 2.5m distance from nozzle |
Circle of approximately 120mm diameter at 2.5m distance from nozzle |
|
Chamber material |
Internal: SUS304 stainless steel, external: stainless steel |
|
|
Test duration per square meter of enclosure surface area likely to be sprayed |
1 min |
|
|
Minimum test duration |
3 min |
|
|
Controller |
PLC touch screen |
|
|
Turntable |
Diameter 300mm, rotate speed 3±1R/min |
|
|
Distance from nozzle to enclosure surface |
Between 2.5m and 3m |
|
|
Power source |
3-phase, 380V, 50Hz |
|

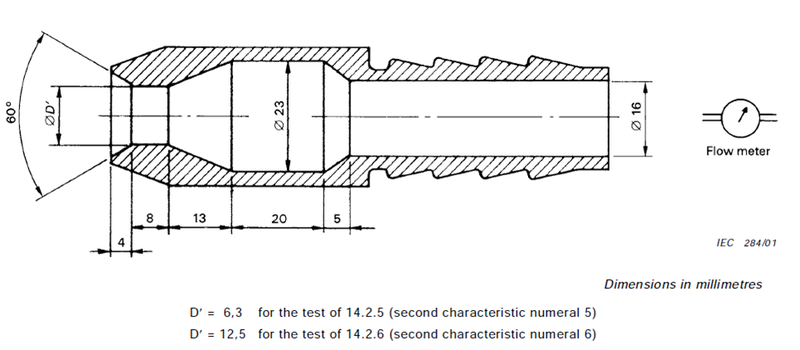

Test device:
