Water Spray Test Chamber - IPX3&X4


IPX3&X4 Test Rig conforms to IEC 60598 & 60529 water test standards for luminaires, automotive and electronic product requirements.

Product Model: R-FS Series
Design Standard: IPX3/X4, IEC 60598, 60529

Application:

Rain Spray Test Chamber conforms to IEC 60598 & 60529 water test standards for luminaires, automotive and electronic product requirements.



Test Standard:

IPX3/X4, IEC 60598, 60529, ISO 20653


Specification:

Model

R-FS-1000

Internal chamber size (W*D*H)

1000*1000*1000mm

External chamber size (W*D*H)

1650*1450*1850mm

Chamber material

Internal chamber

Stainless steel # 304

External chamber

Stainless steel # 201 or Steel plate with powder coating

Chamber door

Stainless steel #201 with tempered glass observation window

Sample turntable

Stainless steel # 304

Loading capacity 10kg

Diameter: 400mm

Rotation speed: 1-3 cycles/min

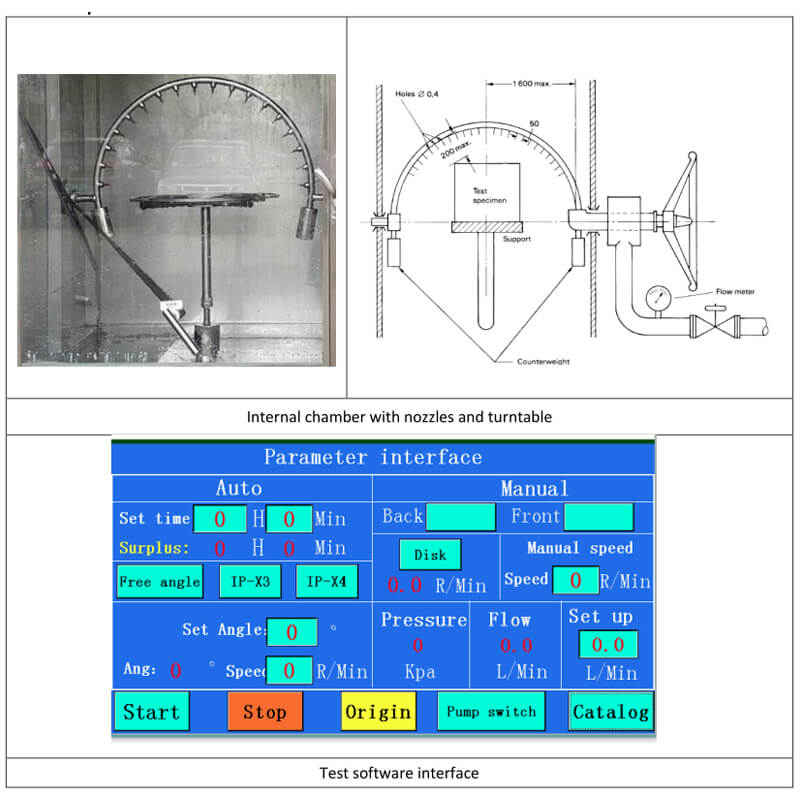

Water spray device

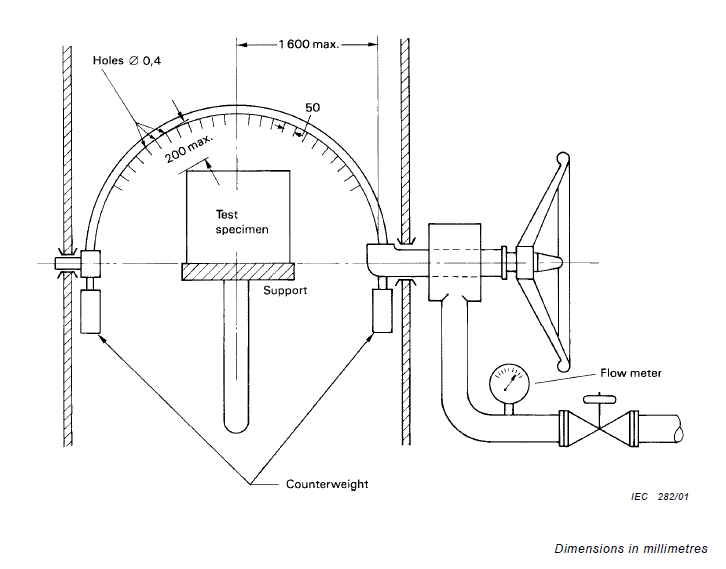

Oscillating tube

Radius 400mm

Oscillating angle

IPX3: spray ±60° from vertical line to each side, total 120°

IPX4: spray ±180° from vertical line to each side, total 360°

Oscillating speed

IPX3: 2*120° for 4s

IPX4: 2*360° for 12s

Spray nozzle

Hole diameter: 0.4mm, removable

Ensure the water sprays in a line and without tolerance

Distance between two nozzles

50mm

Water flow of each nozzle

0.07 L/min +5%

Distance from nozzle to specimen surface

200mm

Control system

Controller

PLC touch screen controller

Test duration: 1~999,999min, adjustable

Safety protection device

Short circuit protection, grounding protection, water shortage protection, audible and visual alarm

Power source

1-phase, 220V, 50Hz



Features of IPX34 Water Spray Test Chamber:

1. Chamber material: Stainless steel.

2. Equipped with water tank for recycling use of water. And also water level floating ball in water tank is used for water level alarm detection to avoid water shortage.

3. Chamber door with tempered glass viewing window and windscreen wiper on the door for easy observing test situation.

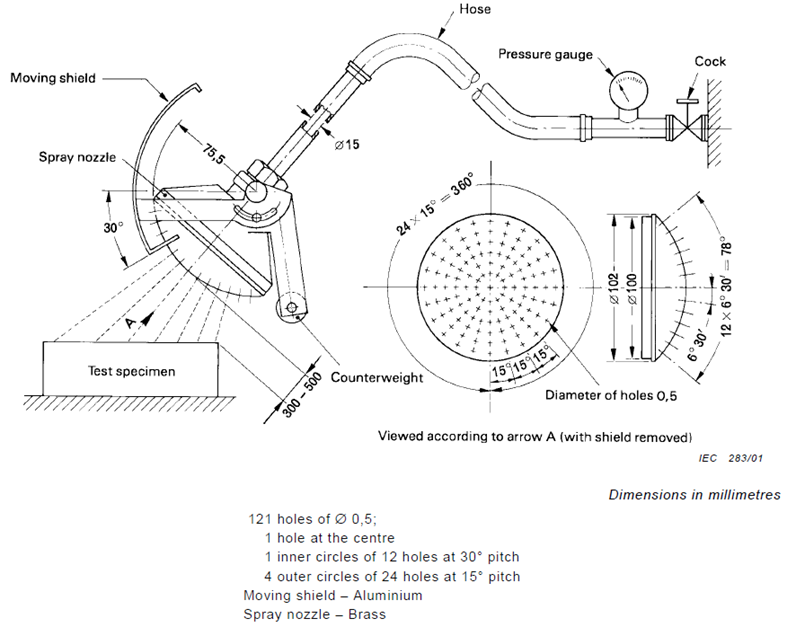

Test device:
