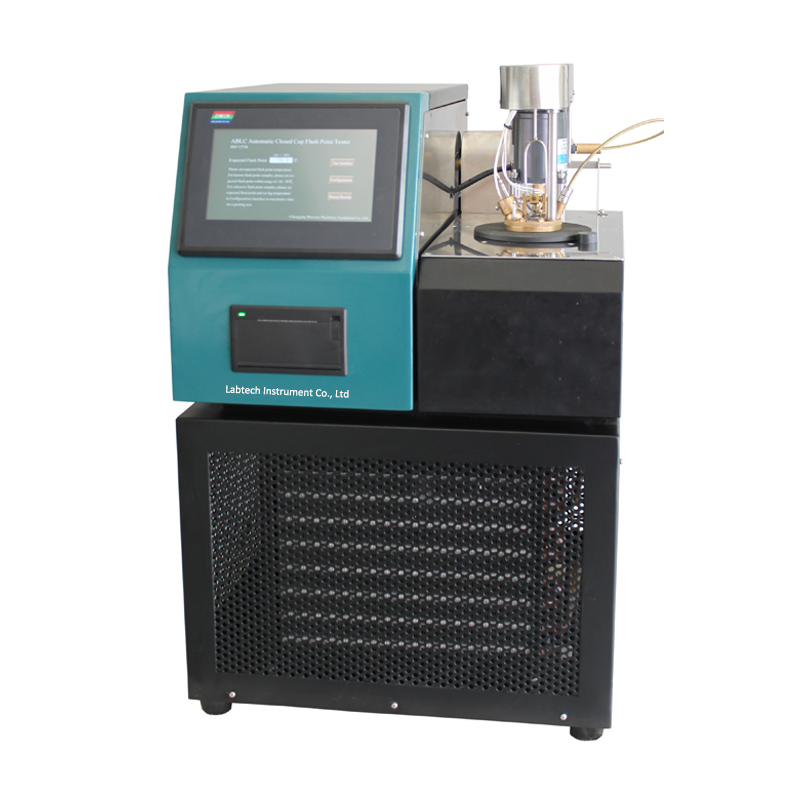

Automated Abel Close Cup Flash Point Tester

Determination of petroleum products and other liquids having flash points between −30.0 °C to 75.0 °C by automated Abel type closed-cup apparatus as per ISO 13736

Product Model: R-SY-21789DZ
Design Standard: ISO 13736

Application:

This machine is used for the determination of petroleum products and other liquids having flash points between −30.0 °C to 75.0 °C by automated Abel type closed-cup apparatus.



Test Standard:

ISO 13736



Specification:

Flash point measuring range

-30℃ to +100℃

Ignition

Electric or gas (interchangeable)

Heating up rate

1℃/min

Cooling down rate

About 2.5℃/min

Mixing rate

30 r/min

Gas supply

Liquefied petroleum gas or Propane

Detection interval

0.5℃

Control & display mode

Touch Screen

Cooling system

Compressor refrigeration combined with metal bath

Heating system

Metal bath with 4 pcs electrical heated tubes

Flash detection

Class A Pt 100

Barometric pressure correction

Automatic correction

Hardware test

Lid up/down

Ignition mechanism

Sample mixer

Ignition test

Heating

Refrigeration

Print

Built-in thermal printer

Data records storage

256 groups data can be stored

Power

1-ph, 220V±10%, 50 Hz

Features:

1) Large color touch screen with high resolution.

2) It adopts ARM single-chip control system, which can realize whole test procedure automatically including test arm automatic up and down,

automatic cooling/heating control, automatic ignition, automatic flash detection and test results automatic save.

3) It includes two types of ignition system with electric or gas igniter for interchange.

4) It adopts metal bath combined with compressor system for heating and cooling quick switch automatically for continuous test in a short time.

5) Built-in digital pressure sensor can correct test results automatically as per actual measured atmospheric pressure.

6) Fault self-diagnosis system and reminder functions.

7) It has temperature limit function. The machine will stop test automatically and remind if the temperature reaches limit value.


Related Products

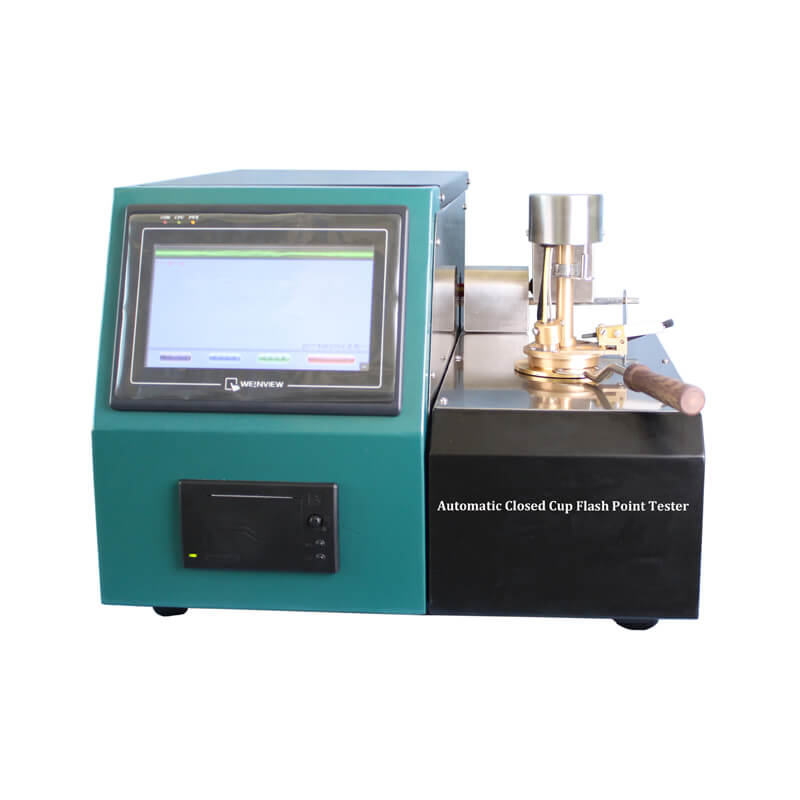

Closed Cup Flash Point Tester

Closed Cup Flash Point Tester

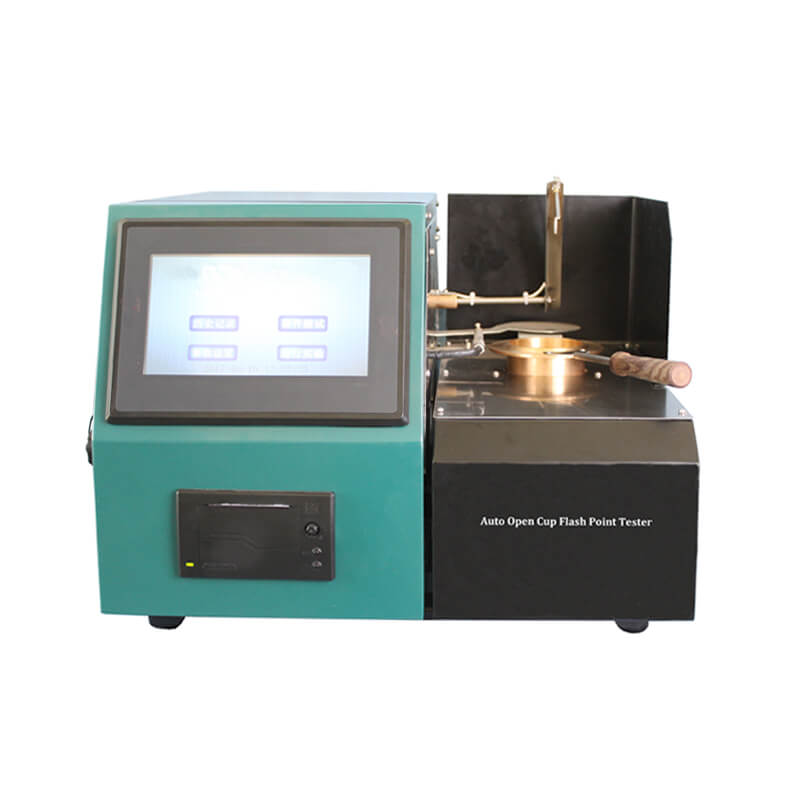

Open Cup Flash Point Tester

Open Cup Flash Point Tester

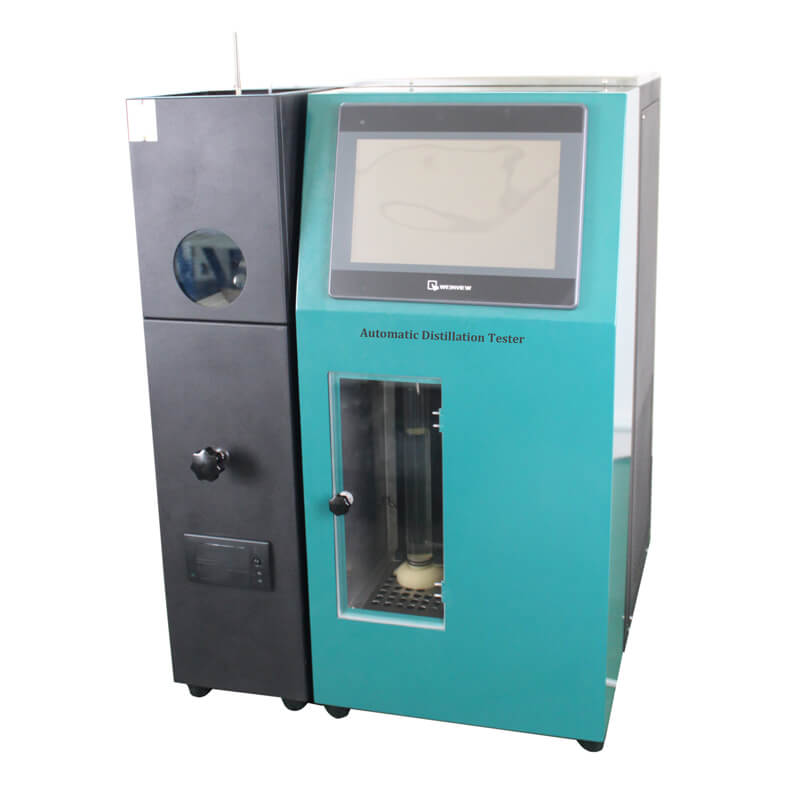

Automatic Distillation Tester

Automatic Distillation Tester

Kinematic Viscosity Tester

Kinematic Viscosity Tester

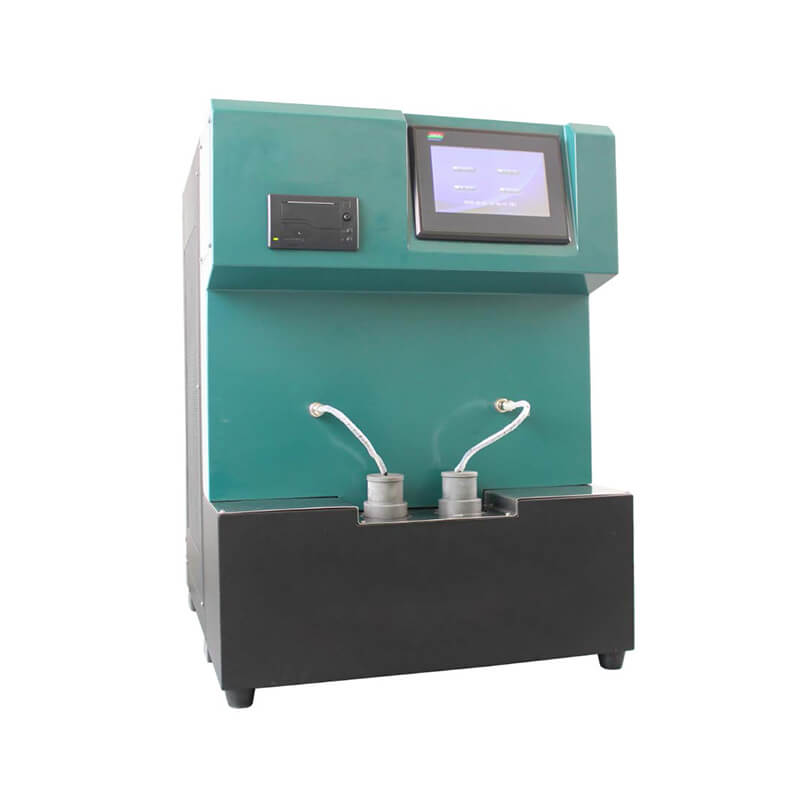

Automatic Solidification Point Tester

Automatic Solidification Point Tester

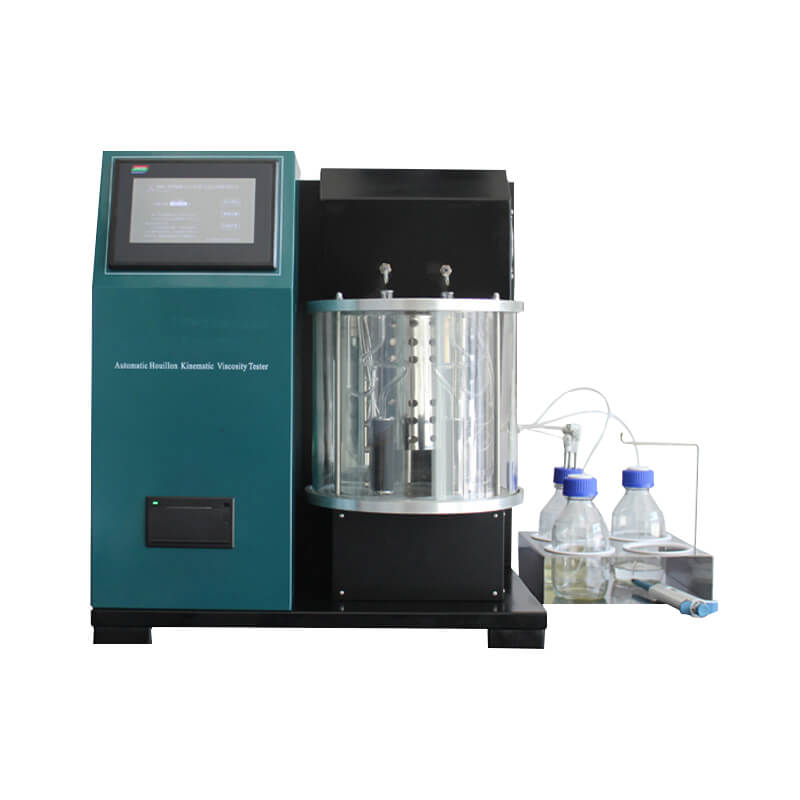

Automatic Houillon Kinematic Viscosity Tester
