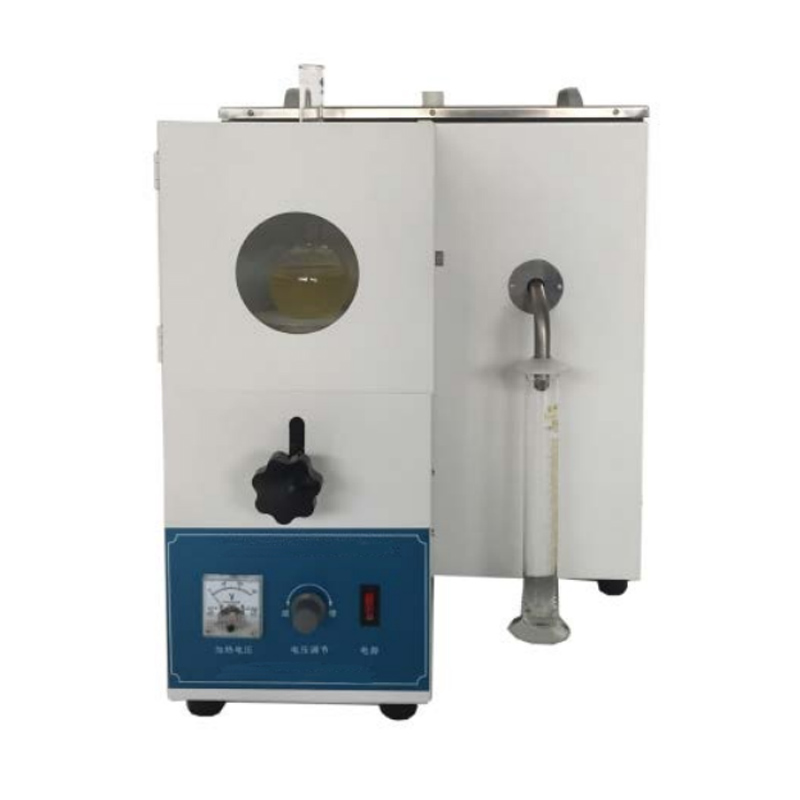

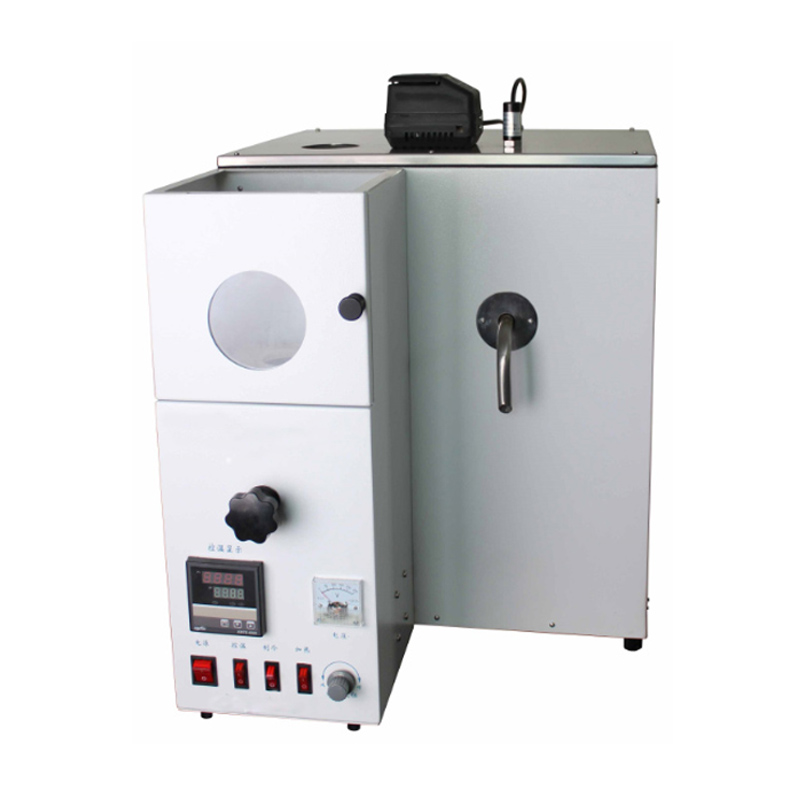

R-SY-6536 Series-Manual
Manual Distillation Tester
Used for the atmospheric distillation of petroleum products and liquid fuels using a laboratory batch distillation unit to determine quantitatively the boiling range characteristics of such products as per GB/T 6536, ASTM D86.
- Product Model
- R-SY-6536 Series-Manual
- Design Standard
- ASTM D86
Description
Application:
Manual Distillation Tester is used for determination of the atmospheric distillation in petroleum products and liquid fuels to determine quantitatively the boiling range characteristics of such products by using a manual distillation unit.
Test Standard:
GB/T 6536, ASTM D86
Specification:
|
Model |
R-SY-6536A |
R-SY-6536B |
|
Condenser bath |
Stainless steel |
|
|
Cooling way |
Ice water |
Compressor |
|
Condenser bath temperature |
/ |
0~60℃ |
|
Heat way |
Heating furnace |
|
|
Heating furnace |
0~1000W, adjustable |
|
|
Heating furnace support board |
Silicon carbide plate, hole diameter with 38mm&50mm |
|
|
Condenser tube |
Single |
|
|
Cylinder volume range |
100mL |
|
|
Cylinder division value |
1mL |
|
|
Distillation flask |
125mL |
|
|
Power |
1-phase, 220V, 50Hz |
|
|
Accessories list |
125mL distillation flask: 1pc 100mL receiver cylinder:1pc Cylinder base: 1pc Thermometer (-2 to400℃): 1pc Thermometer (0 to 50℃): 1pc, for R-SY-6536B Plug for thermometer: 1pc Heating furnace support plate: 1set silica gel plug: 1pc Fuse 20A: 2pcs Power wire: 1pc English manual: 1pc |
|
