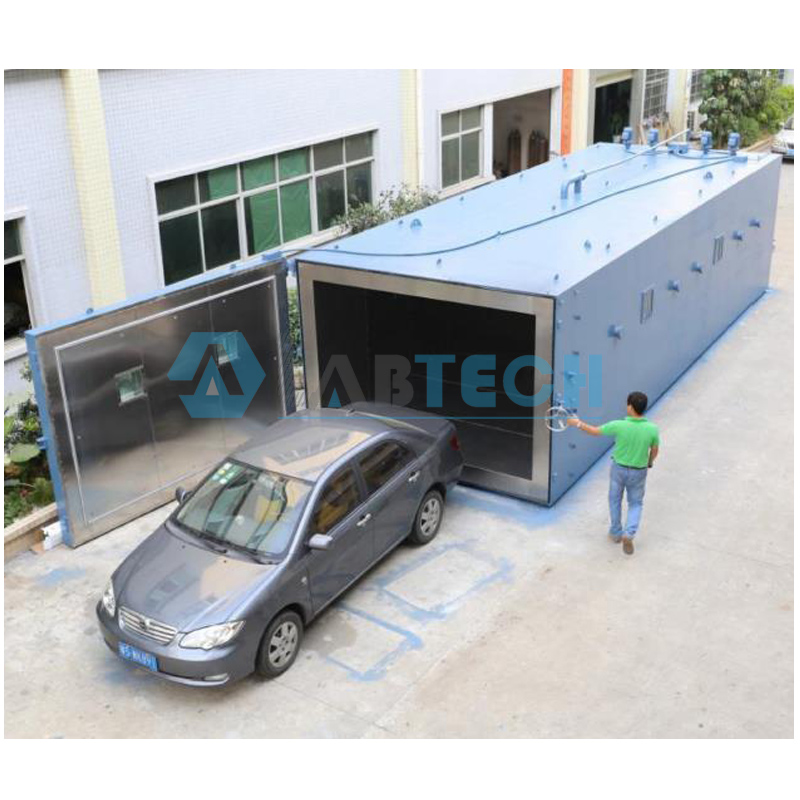

Altitude Temperature (Humidity) Chamber


Altitude Temperature (Humidity) Chamber/ Temperature (Humidity) Pressure Chamber is used for highlands environmental simulation in condition of low-pressure, low-temperature to do reliable test for product by air transport.

Low Pressure Temperature Chamber applies to packages for automatic components in defense industry and space industry, automotive parts, battery, LCD screen modules and related products, which will be affected by combined condition of low pressure, temperature and high altitude.

Product Model: RK-PTD Series
Design Standard: ASTM D4169, SCHEDULE I; ASTM D6653

Application:

Altitude Temperature (Humidity) Chamber/ Temperature (Humidity) Pressure Chamber is used for highlands environmental simulation in condition of low-pressure, low-temperature to do reliable test for products by air transport.


Low Pressure Temperature Chamber applies to packages for automatic components in defense industry and space industry, automotive parts, battery, LCD screen modules and related products, which will be affected by combined condition of low pressure, temperature and high altitude.



Test standard:
ASTM D4169, SCHEDULE I; ASTM D6653



Specification:

Item

Specification

Internal volume

100L, 225L, 652L,800L,1000L (customized)

Temperature & Pressure Performance

Test temperature

-70~+150℃(as per requirement)

Temperature fluctuation

≤±0.5℃ (Atmosphere pressure, without load)

Temperature deviation

≥100℃, ±3.0℃ (Atmosphere pressure, without load)

<100℃, ±2.0℃ (Atmosphere pressure, without load)

Cool down

+100℃to -70℃, 1℃/min in average

(Atmosphere pressure, non-linear without load)

Heat up

-70℃to +100℃, 3℃/min in average

(Atmosphere pressure, non-linear without load)

Pressure range

Atmosphere pressure~1kPa (adjustable)

Pressure deviation

≤±2.0kPa (≥40kPa)

≤±0.5 kPa (2kPa~40kPa)

≤±0.1kPa(≤2kpa)

Pressure recovery rate

10kPa/min (adjustable)

Pressure release time

Atmosphere pressure~1kPa ≤30min (under room temperature)

Chamber Structure

The equipment consists of five basic parts: test chamber, temperature cycling system, low pressure vacuum system and program control system.



-Test chamber includes pressure vessel, door, insulation layer, enclosure seal, test signal output hole and external flange, inside chamber lighting, etc.



-Temperature cycling system has refrigeration system and heating system.



-Low pressure vacuum system includes vacuum pump, vacuum gauge, vacuum solenoid cut-off valve, vacuum relief valve, vacuum trimming valve, oil trap, pipes and hoses, as well as standard connectors.



-Control system has English interface, to control low pressure system, temperature cycling system, refrigeration unit, valve opening process, test data processing (collect, store & download), etc.

Refrigeration System

Refrigeration compressor

German Bock semi-closed compressor

Evaporator

Fin heat exchanger, Copper coil heat exchanger

Condenser

Shell and tube heat exchanger / Fin heat exchanger

Evaporative condenser

Brazed plate heat exchanger

Refrigerant

R404A/R507 (Ozone depletion index 0)

Vacuum System

Vacuum pump

Imported mechanical pump

Vacuum sensor

UNIK 5072

Control System

Controller

PLC touch screen controller

Chinese and English are optional

Safety Protection Device

Refrigeration system

Compressor overpressure protection

Compressor motor overheating protection

Compressor motor overcurrent protection

Test chamber

Adjustable over temperature protection

Test space temperature fuse

Extreme over temperature protection of air conditioning channel.

Fan motor overheating protection

Heater fuse overcurrent quick fuse

Wall heater extreme over temperature protection.

Others

Vacuum pump motor overcurrent & overload protection

Power source phase sequence and lack of phase protection.

Electric leakage protection.
